Integrated Parking Guidance System

  •  Integrated Detector
  •  Integrated Detector
  •  Integrated Detector
  •  Integrated Detector
  •  Integrated Detector
 Integrated Detector Integrated Detector Integrated Detector Integrated Detector Integrated Detector

Integrated Detector

  • Communication:RS485
  • Model:Parking-ID201
  • Integrated ultrasonic detector
  • Distance to ground:>=1.1M
  • Product description: We're professional parking guidance system integrated sensormanufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For price list, contact us now.
  • INQUIRY

Technical Parameters:

Working voltage: DC24V/1W

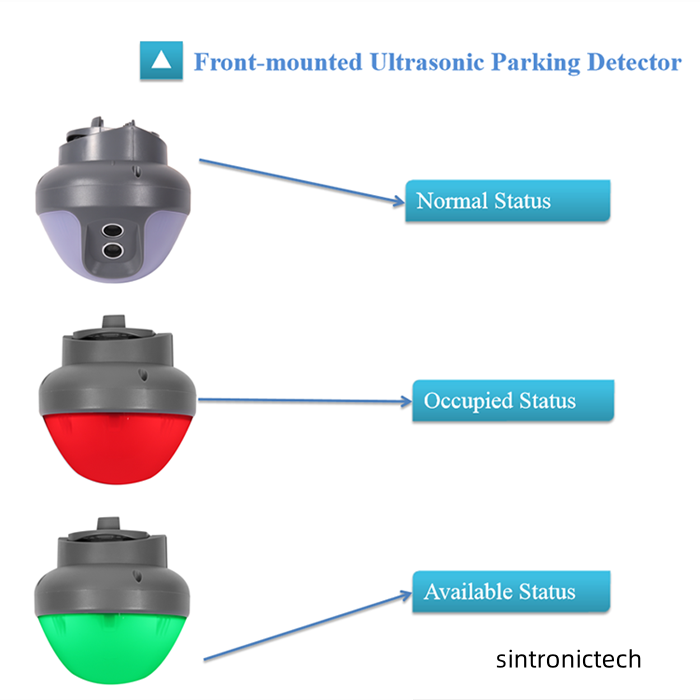

Indication color: red/green/blue
Detection accuracy: higher than 99.8%
Communication method: RS485/300M

Installation height: 1.5-4M/recommended 2.5M

Important noted

Advised installation distance to ground is usually 2.5Meter

The detector start to work base on setting the detecting distance max than 1.1 meter

Features

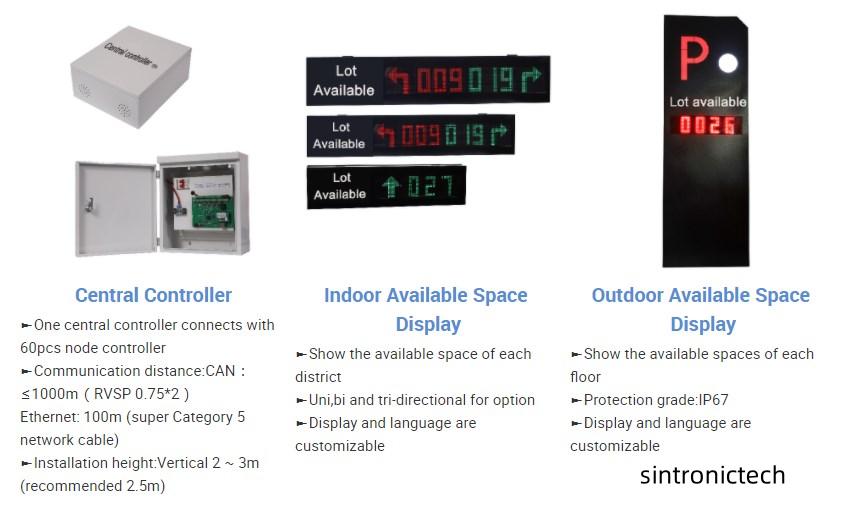

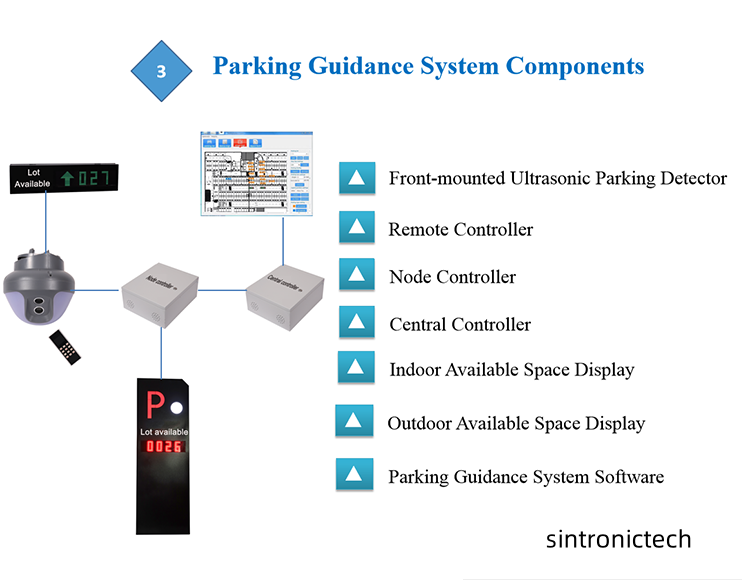

Componenents For complete integrated parking guidance system

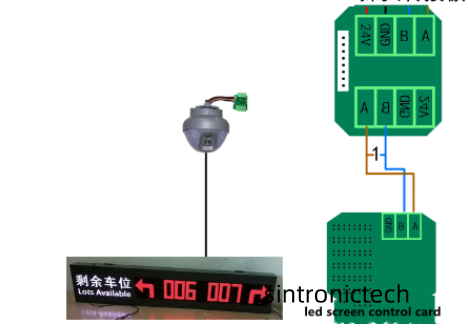

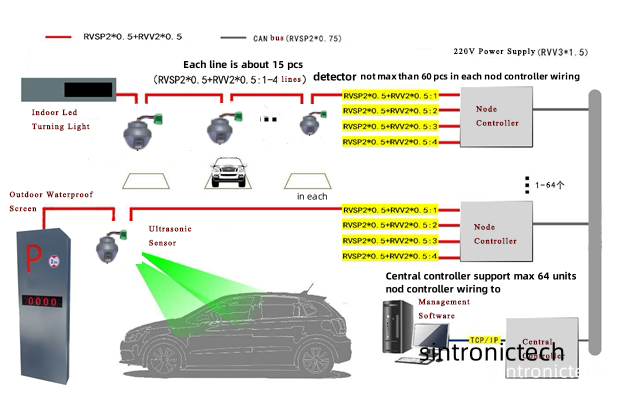

System Wiring Diagram

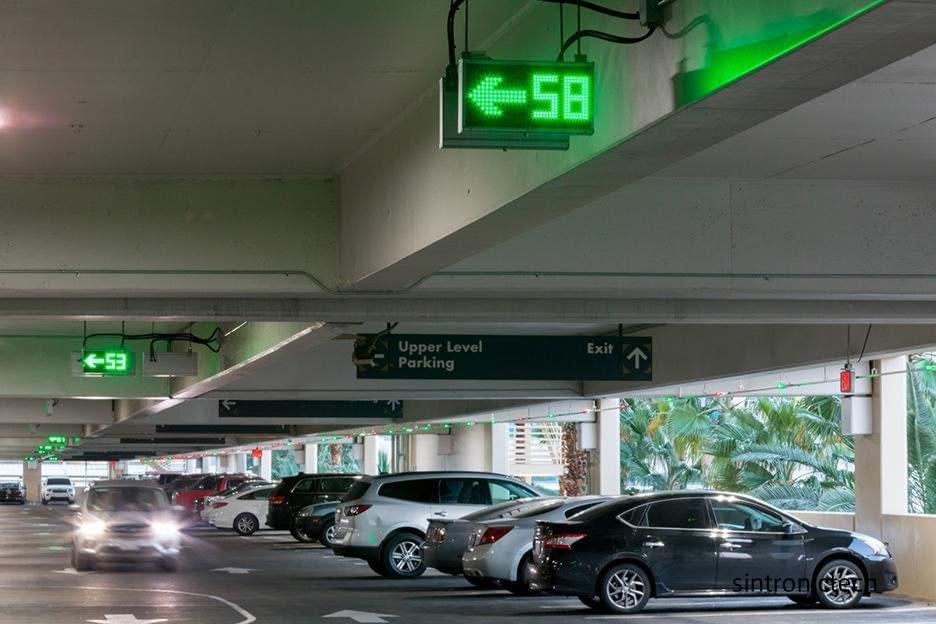

Applciations

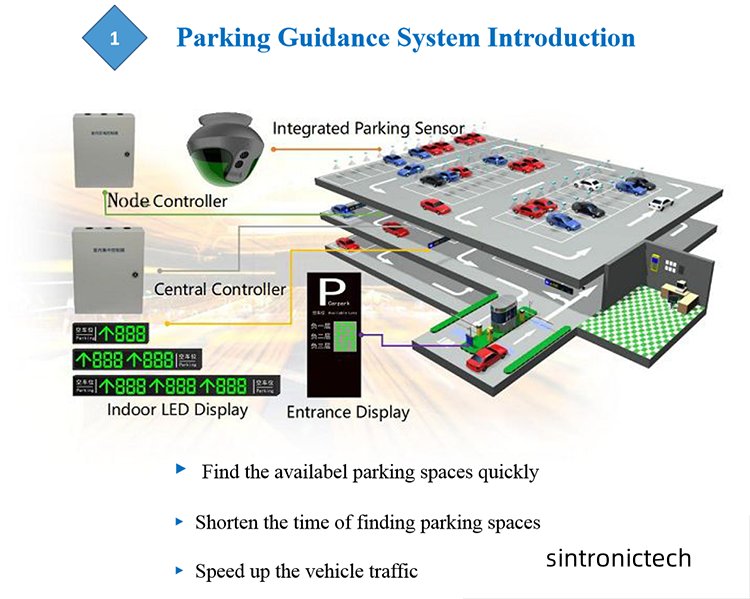

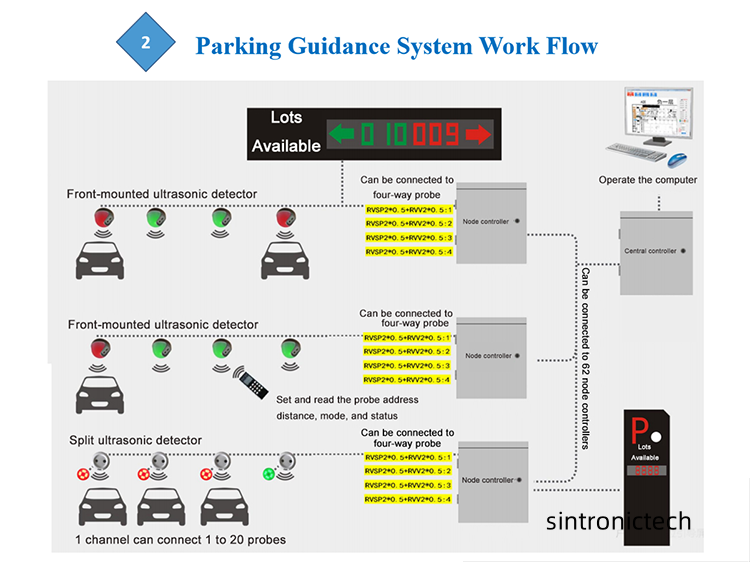

Sintronic integrated parking guidance system is mainly suitable for large and medium-sized underground parking lots, and is widely used in public parking lots such as government office buildings, large hospitals, railway stations and shopping centers. Its main working principle is to send ultrasonic waves from top to bottom according to the ultrasonic detector to detect the reflected waves on the roof and the ground, so that it can correctly detect whether there is a vehicle in each parking space, and then pass the parking information of each parking space through the network line Pass it to the control computer, and the computer passes the guidance signal to the guidance indicator through software processing. Indicators guide drivers to quickly find vacant seats.
