Integrated Parking Guidance System

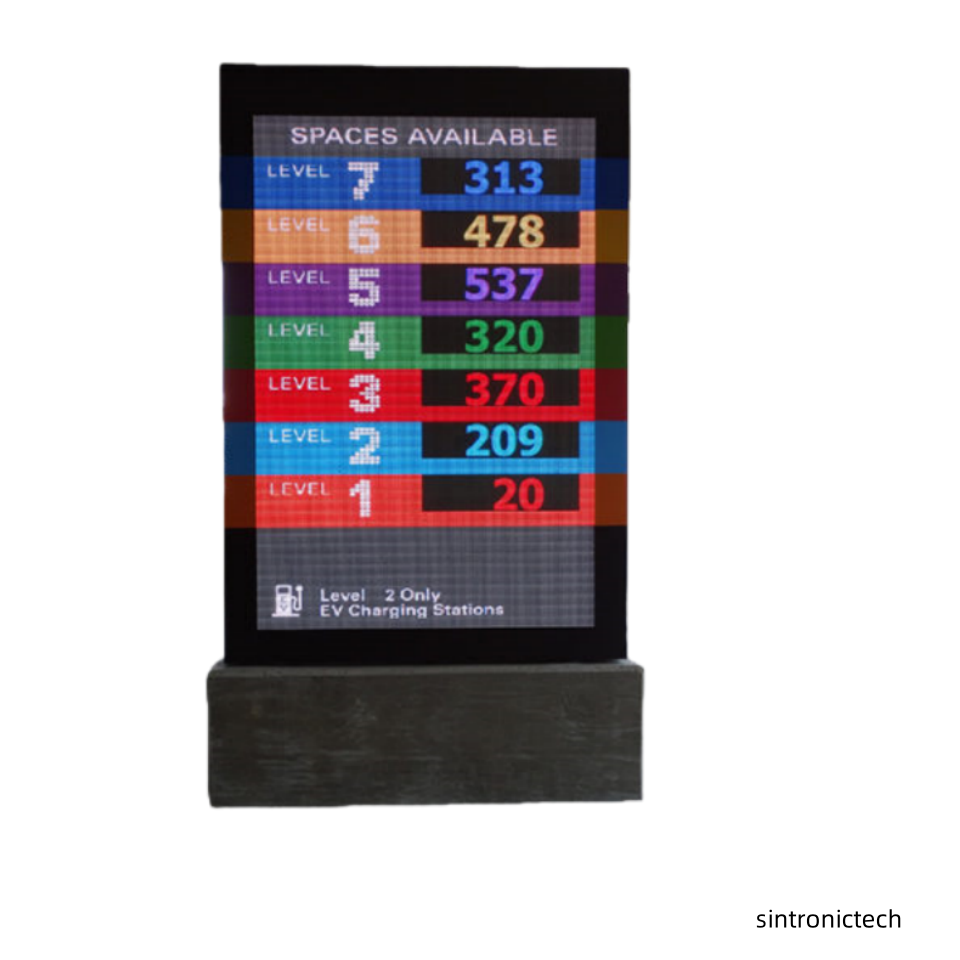

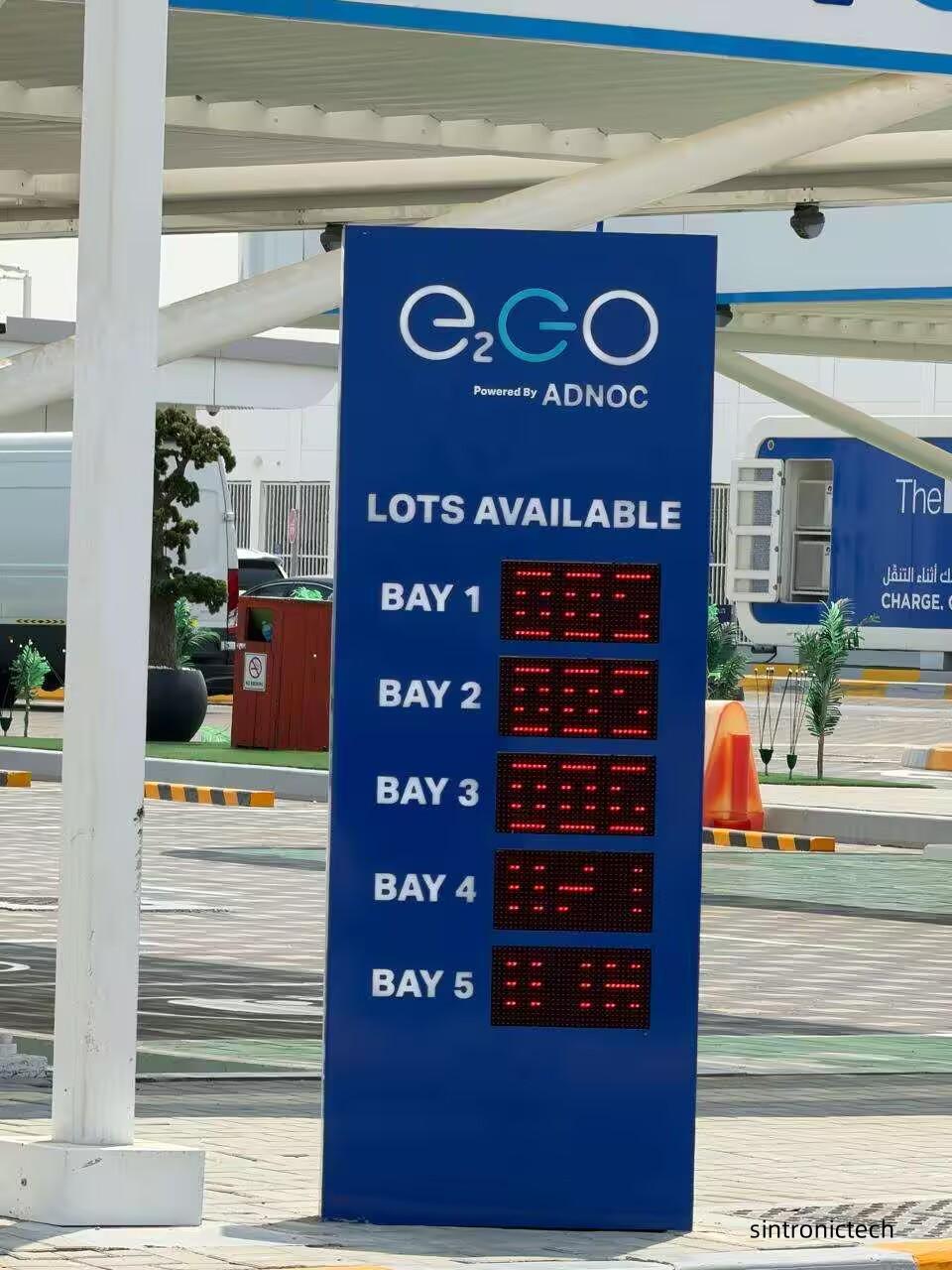

Integrated PGS Outdoor LED Display

Single direction
2 directions
3 directions
outdoor
Product description: We're professional Outdoor Led Display For Integrated Parking Guidance System manufacturers and suppliers in China, We warmly welcome you to wholesale bulk in stock from our factory. For price list, c
INQUIRY

Technical Parameters:

Power supply：AC220/110V±10% /1A

Working temperature：- 20℃－65℃

Typical power consumption：<25W

Communication interface：RS-485

Communication rate ：9600bps

The screen type： 64×32 dot matrix

Brightness mode：【0~256】level adjustable

Overall size ：560×210×80 mm, 1120*210*80 mm, 1680*210*80 mm

size and floors can be customized according to real project request

Wiring Diagram

Led display direction arrow changing method

A)it requested to use rs485 debug tool to connect to the computer and between the led
screen A&B

1.USE THE L ED SCREEN DEBUG TOOL TO CONNECT THE.RS485 PORT TQ LED
SCREEN RS485 PORT THEN THE TOOL OTHER SIDE USB
2. CONTINUE TO INSTAL L THE DRIVER UNTIL FINISH
