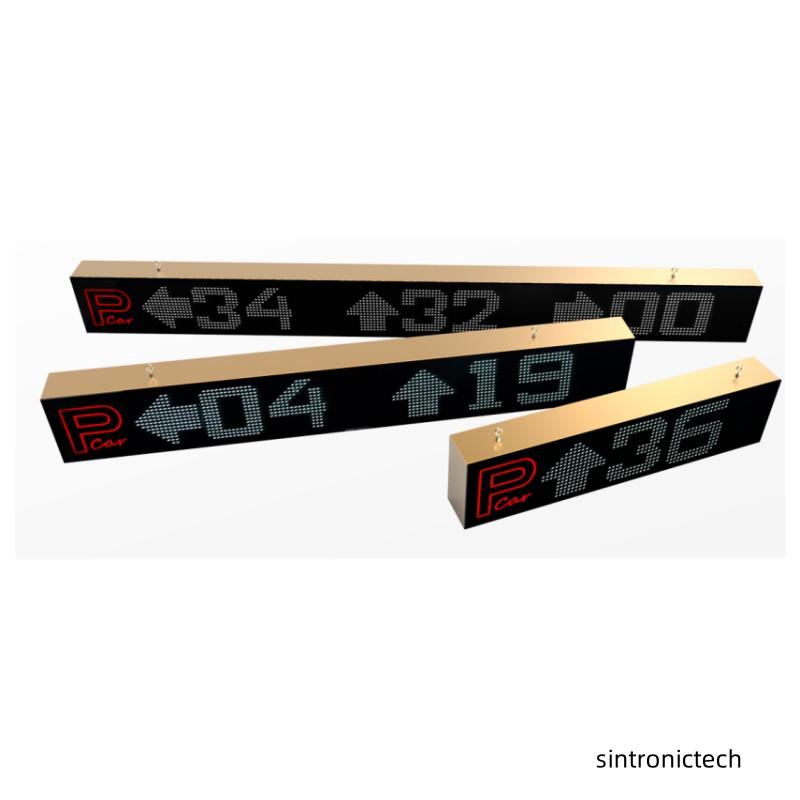

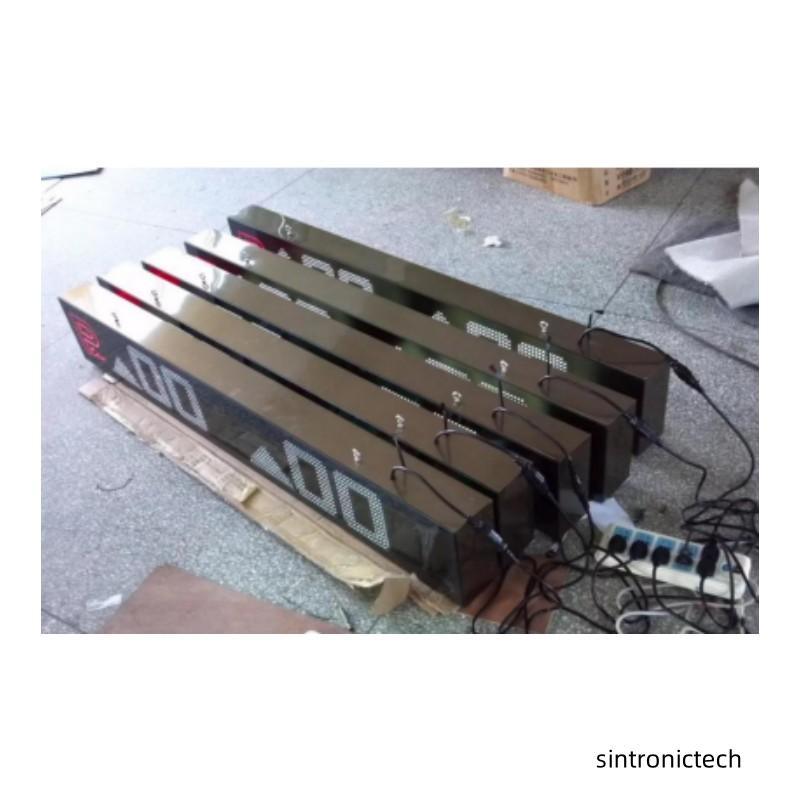

OEM Indoor Led Display For 3 in 1 Parking Guidance System

Model:Parking- 301Screen

Parking-302 screen,Parking- 303Screen

Technical Parameters:

Power supply:220-240V

Body structure and material: special#25 champagne brusted all -aluminum alloy fuselage

Panel material:#5 Black all -tempered glass panel
Dimensions: 860mmx210mmx110mm
Single weight: about 10kg
System core structure: adopt the latest leading Internet communication technology to achieve precise guidance instructions of points and points

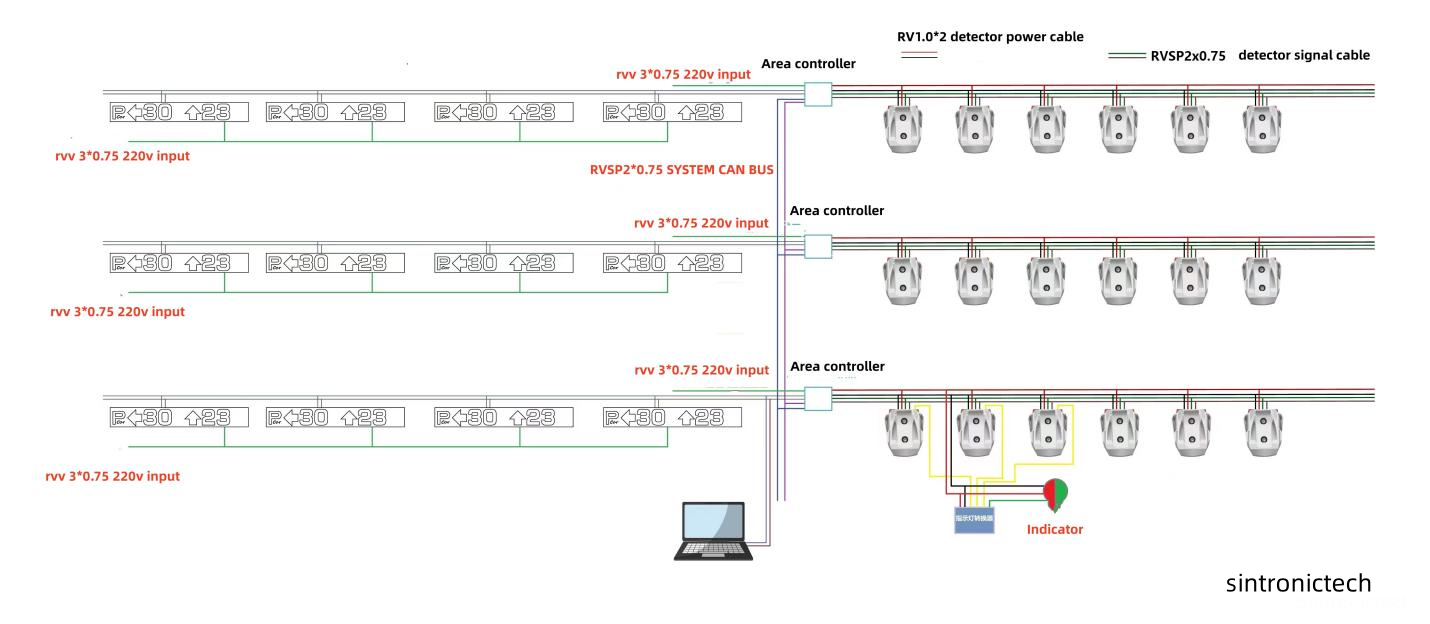

Wiring Diagram

1.The wiring terminal of the area controller is 8 digits, which are n1; n2; n2; n3; n4; n5; n6; n7; n8; terminal function definition as:
N1: DC12V+
N2: GND
N3: The total data line of system communication RS485+, connects the communication bus of the controller in each area in the system, is used to establish the communication between the area controller in the entire system;
N4: System communication total data line RS485-, connects the communication bus of the controller in each region in the system, is used to establish communication between the area controller in the entire system;
N5: The parking  display bus RS485+, connected to any parking screen display in the system, the connected area is not limited, the connected display  type is not limited, the geographical location of the connection is not limited;
N6: The parking space display bus RS485-, connected to any parking screen display in the system, the connected area is not limited, the connected display type type is not limited, the connected geographical location is not limited;
N7: The parking space detector bus bus connected to the area RS485+ is used to collect the parking space status of the area
N8: The parking space detector bus bus RS485- in the area is used to collect the parking space status in the area
Parking Display Screen
There are two groups of cables in the remaining display screen of the parking space, which are divided into AC220V power cord and RS485 communication cable. It is defined as:
AC220V three -core characters connect plug -in cable definition:
Brown: L fire line
Blue: N zero line
Yellow -green: ground line
The definition of the two -core shielding communication cable:
Brown: RS485+Communication
Blue: RS485-Communication

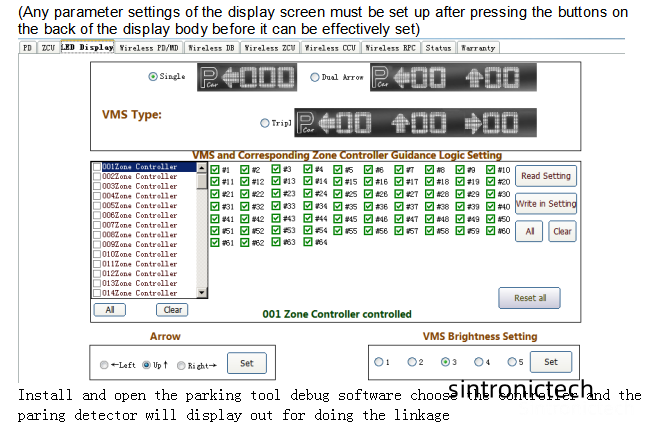

Indoor Led Display Setting In Software
