OEM Outdoor Led Display For Parking Guidance System

Model:Parking- 303OD Screen

Technical Parameters:

Size: (can be customized according to customer requirements) One-way 1065*270*90mm Working voltage: AC 110～240V
Two-way 1370*270*90mm Power consumption: ≤15W (one-way)
Three-way 1690*270*90mm Environmental humidity: 30%--90% (relative humidity)
Appearance material: cold plate laser cutting and baking varnish Communication method: RS485
Light source: Red/green LED lamp beads Communication distance: ≤300m

Features:

1.Sintronic Parking space guidance outdoor led display  is made by high brightness LED module, drive circuit, control circuit, bracket and so on. with a dynamic digital and fixed words real-time displaying mode, it receive and display the empty slots information sent by the data center real-time. It can work 24 hours and can set up different address to show empty slots information in different area for the parking guidance system

2.Install sintronic Parking bay direction guidance indoor display in an important fork in the parking lot. Receive the output information of the concentrated controller, display the number of empty parking spaces in the area in the form of numbers, arrows, and guide car owners to quickly find the empty parking spaces to ensure the smoothness of the parking lot and the full use of parking spaces.

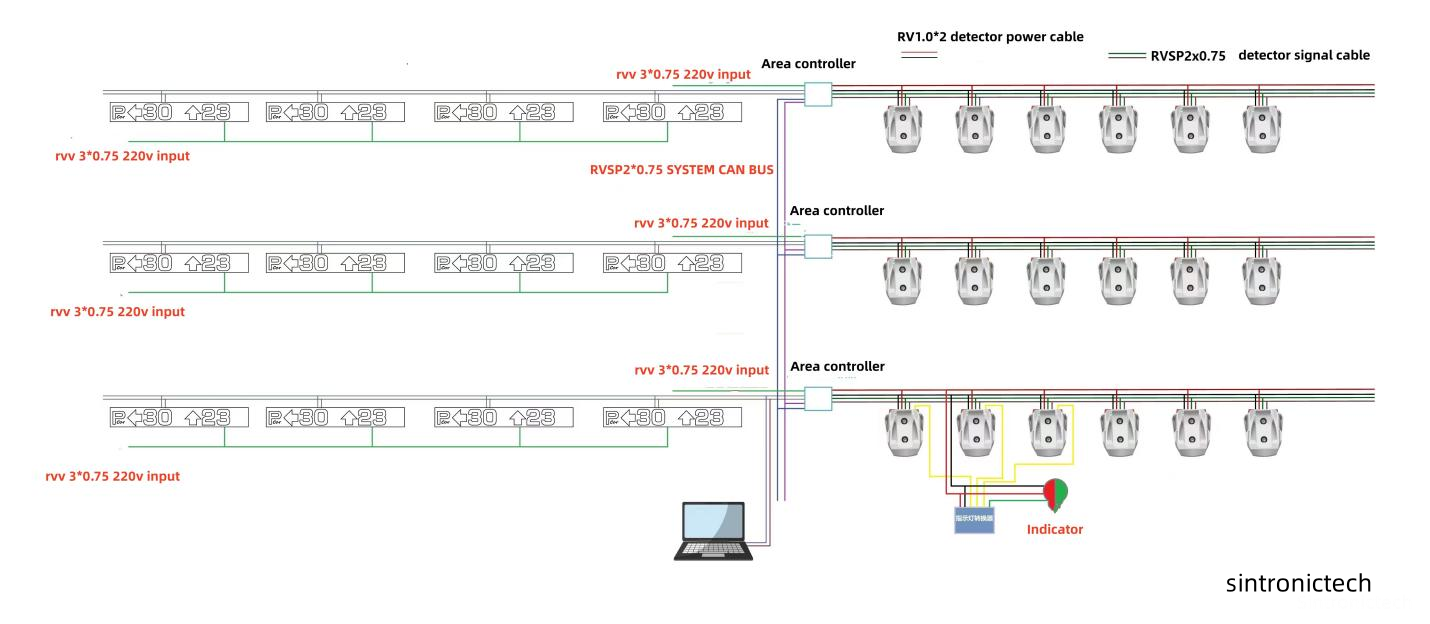

Wiring Diagram

1.The wiring terminal of the area controller is 8 digits, which are n1; n2; n2; n3; n4; n5; n6; n7; n8; terminal function definition as:
N1: DC12V+
N2: GND
N3: The total data line of system communication RS485+, connects the communication bus of the controller in each area in the system, is used to establish the communication between the area controller in the entire system;
N4: System communication total data line RS485-, connects the communication bus of the controller in each region in the system, is used to establish communication between the area controller in the entire system;
N5: The parking  display bus RS485+, connected to any parking screen display in the system, the connected area is not limited, the connected display  type is not limited, the geographical location of the connection is not limited;
N6: The parking space display bus RS485-, connected to any parking screen display in the system, the connected area is not limited, the connected display type type is not limited, the connected geographical location is not limited;
N7: The parking space detector bus bus connected to the area RS485+ is used to collect the parking space status of the area
N8: The parking space detector bus bus RS485- in the area is used to collect the parking space status in the area
Parking Display Screen
There are two groups of cables in the remaining display screen of the parking space, which are divided into AC220V power cord and RS485 communication cable. It is defined as:
AC220V three -core characters connect plug -in cable definition:
Brown: L fire line
Blue: N zero line
Yellow -green: ground line
The definition of the two -core shielding communication cable:
Brown: RS485+Communication
Blue: RS485-Communication

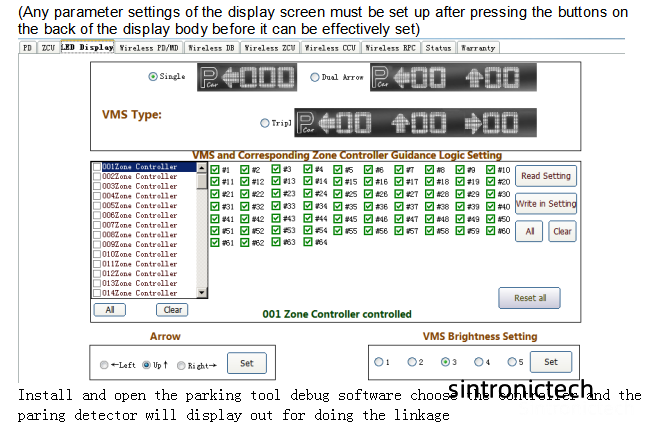

Outdoor Led Display Setting In Software
