OEM Detector For 3 In 1 Parking GUidance System

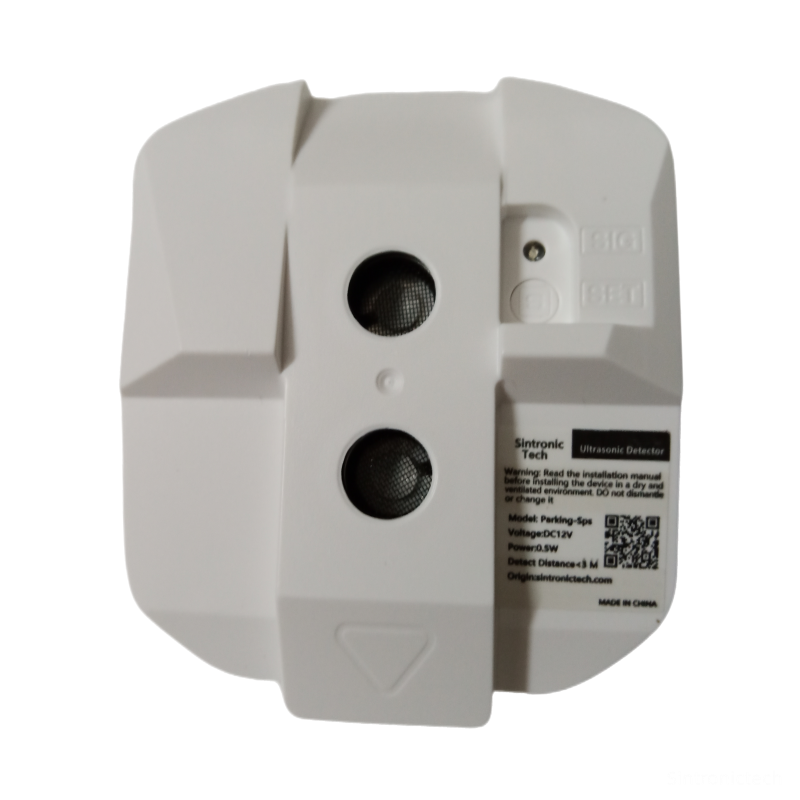

Technical Parameters:

Body shell structure/material: ABS plastic
Body color: white
Dimensions: 98mmx80mmx37mm
Communication mode: RS485
Working voltage: DC12V
Average power consumption: 30mA

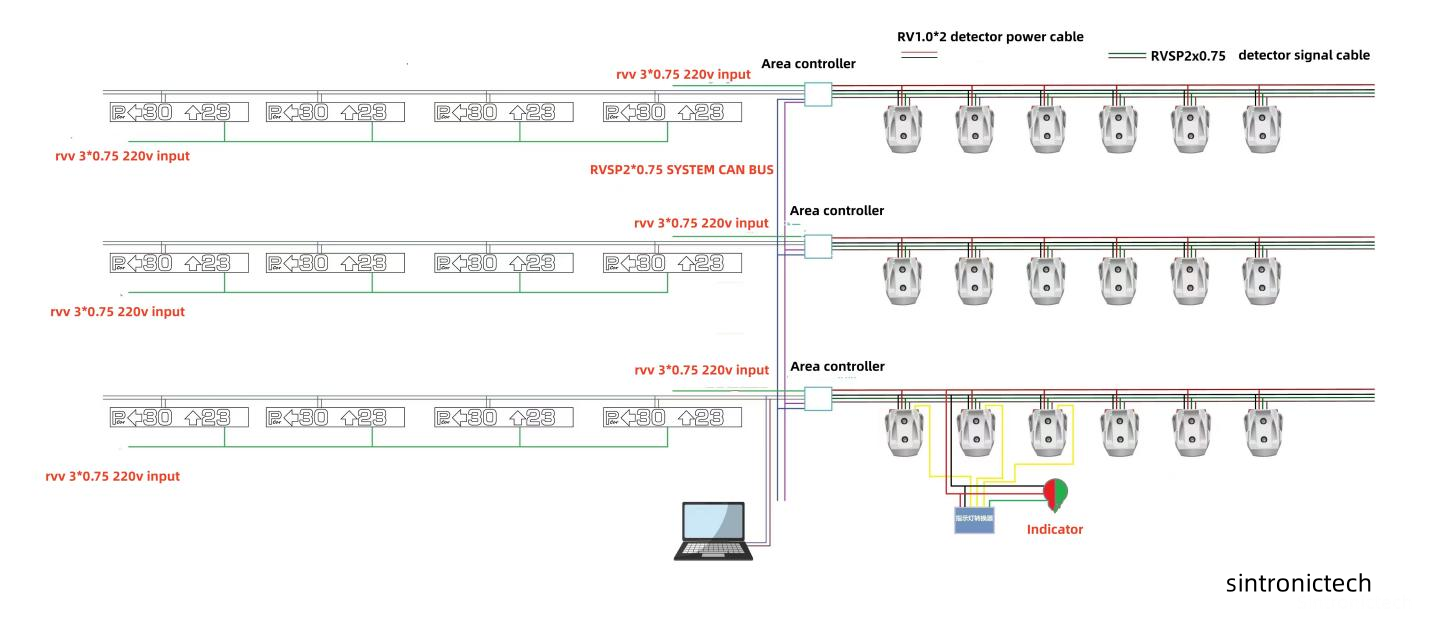

System Wiring Diagram

Setting

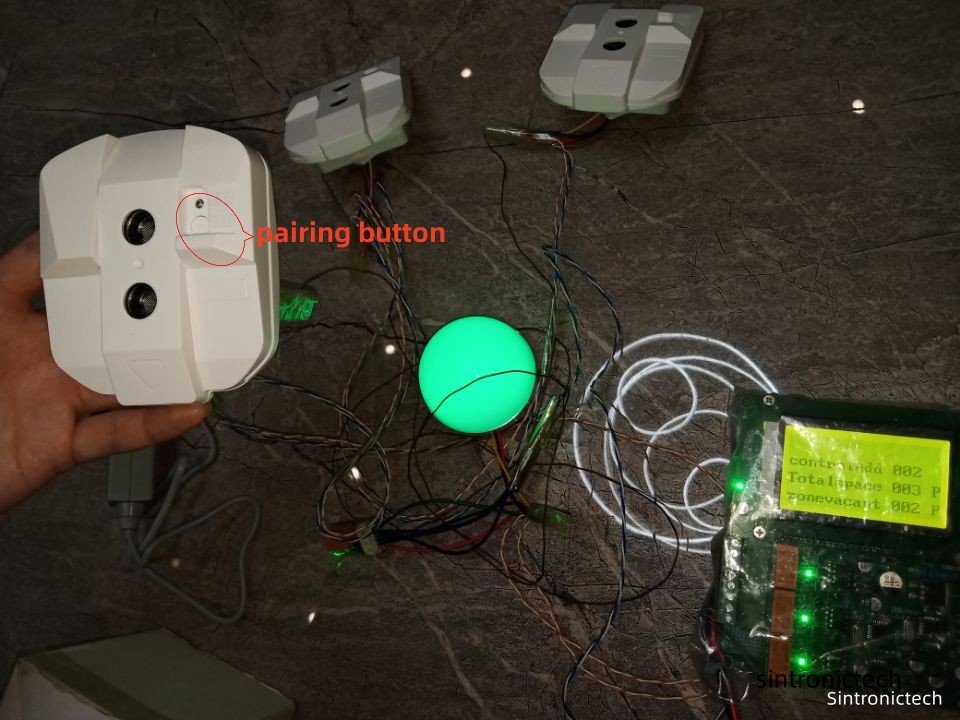

a:Long press controller,s A button to enter the set up manual and pairing the detector to the belonging area controller by
pushing the detector surface panel set button

For example in the following picture as refer area controller is 001 address ,detector set up
address is to Number 20
After finish setting the detector address the area controller can feedback the address number 20
detector parking bay status
B: Before setting ultrasonic detector, the power supply and line wiring must be guaranteed
correctly, and you can also pairing to area controller by intending to get the detector have
only 10cm distance to make it to detect the objects
Noted:lf there is a "failure", please check the above requirements and try again;
