Descriptions

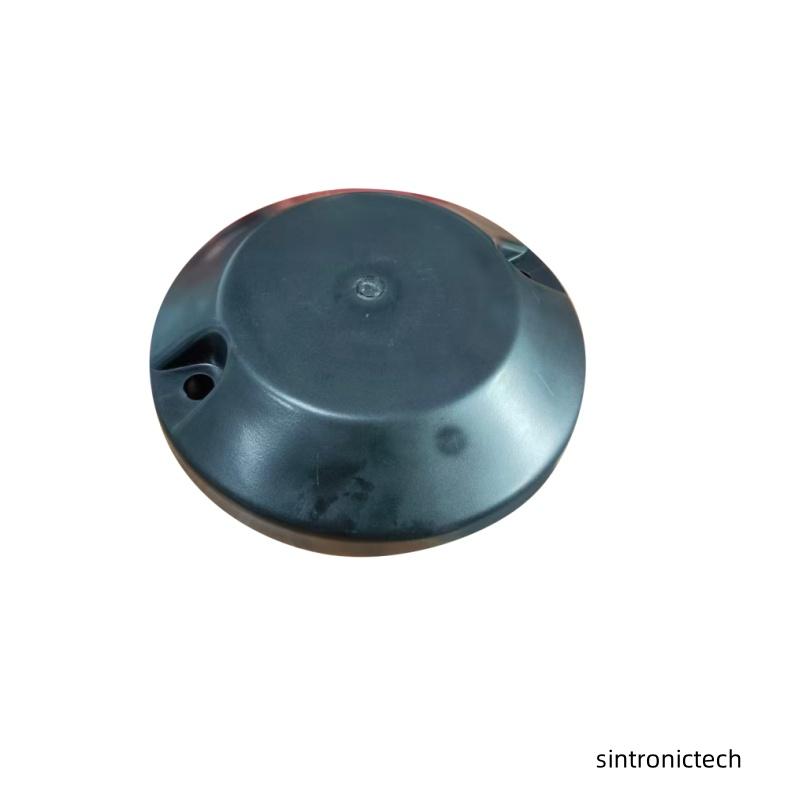

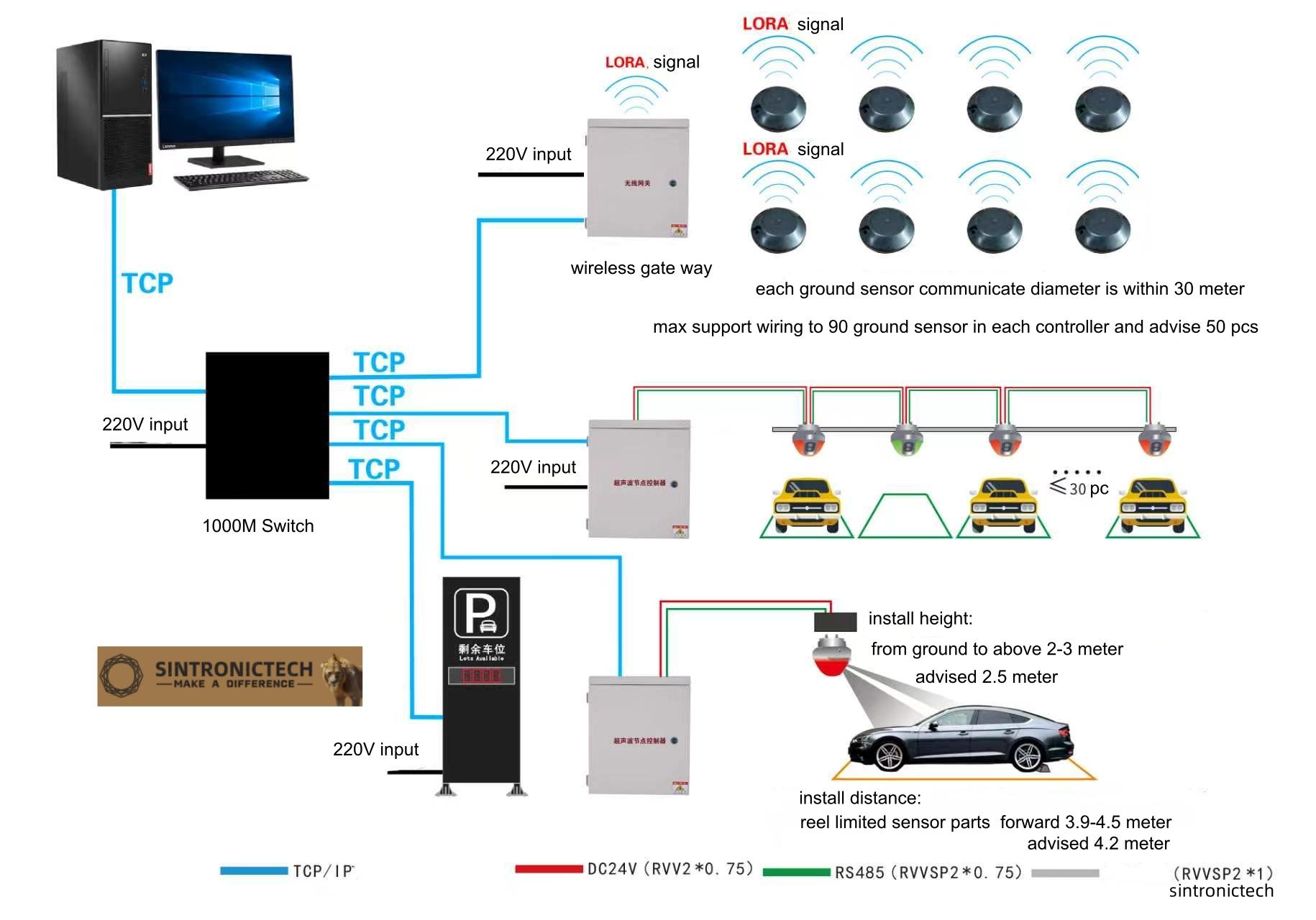

Outdoor surface microwave parking space detector(ground sensor), installed in the middle of each parking space, collects real-time parking status information and uploads it wirelessly via LORA to the gateway access system. It features an ultra-low power design with long battery life.

2 Product Features
1) The design is aesthetically pleasing and sophisticated, with a strong sense of technology, enhancing the image and quality of the parking lot;
The detector employs a 24GHz millimeter-wave parking space detection module with anti-interference algorithms, achieving an accuracy rate of over 99.5%;
3) The parking space detector features a wireless and waterproof design, effectively addressing issues such as inconvenient wiring for outdoor parking spaces, as well as difficulties in installation and maintenance, thereby reducing construction costs and time;
4) The outdoor surface microwave detector features an ultra-low power design with a built-in high-capacity battery, eliminating the need for external power supply. The internal battery ensures over 3 years of operational life for the device;
5) The outdoor surface microwave parking space detector features a waterproof and reinforced design, facilitating parking lot cleaning and preventing damage from human trampling or other causes;

3.Specifications

Operating Voltage: 2.5~3.6V (Built-in Battery)

Specifications: Φ177 * 40mm
Battery Capacity: 9000 mAh
Net weight: 590g
Average current: <50uA
Protection Rating: IP66
Battery Life: Operational for over 3 years

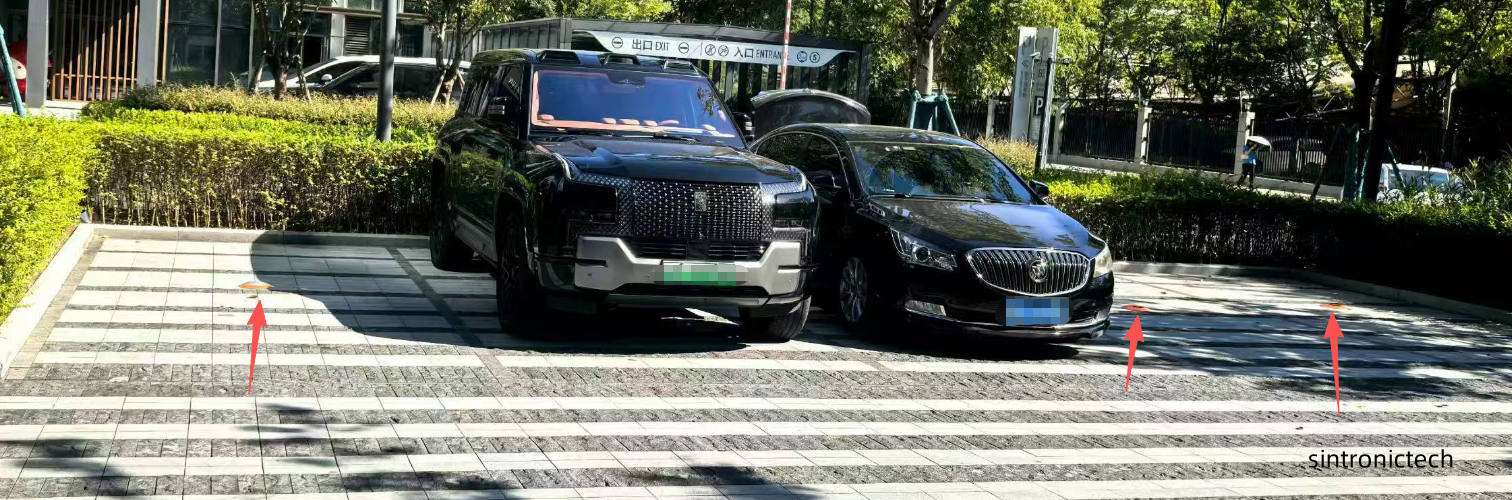

Installation Position:  Central of the parking space
Communication Method:  LORA 470MHz
Shell material: Gray ABS engineering plastic
Communication range: ≤30m
Operating temperature: -20 to +65°C

Detection accuracy: >99.5%

4 Product Installation

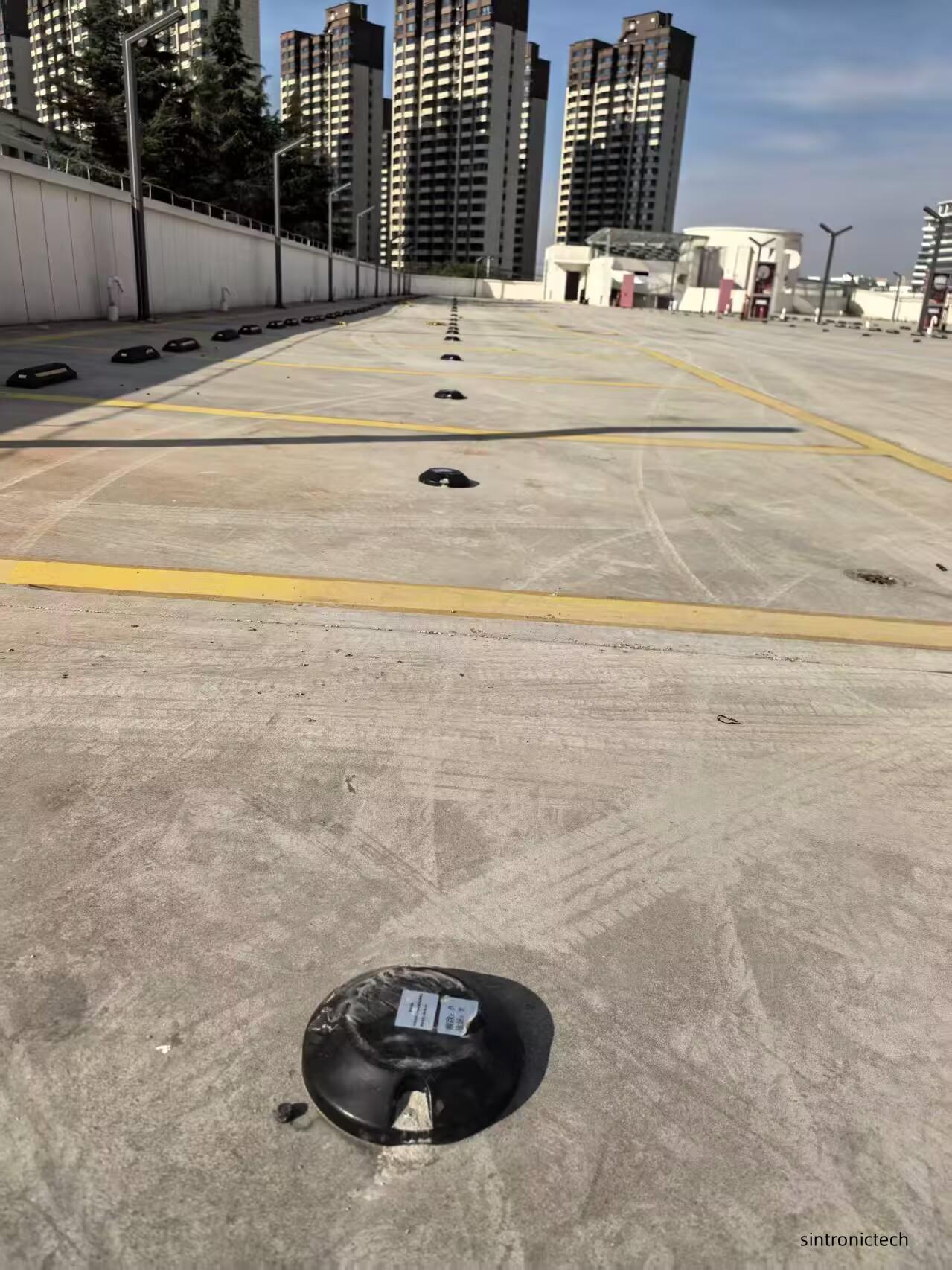

The outdoor surface microwave parking detector is installed and fixed in the middle of each parking space. First, use an 8MM impact drill to drill holes, and then use M6 * 60 screws to fix the detector to the ground.

5. Use and maintenance
1) Non system maintenance personnel are not allowed to operate system equipment arbitrarily to prevent misoperation and system failure.
2) After the system configuration file is completed, please make a backup to prevent it from being damaged and unable to be restored, reducing maintenance workload
3) When replacing faulty equipment, please disconnect the power supply of the equipment before operation to prevent burning of the equipment during the operation process.
4) When the system is not working properly, please first check the power supply of each device to see if it has been mistakenly turned off.

FAQ
1.How to operate the remote controller to read the ground sensor informations and to do the setting?

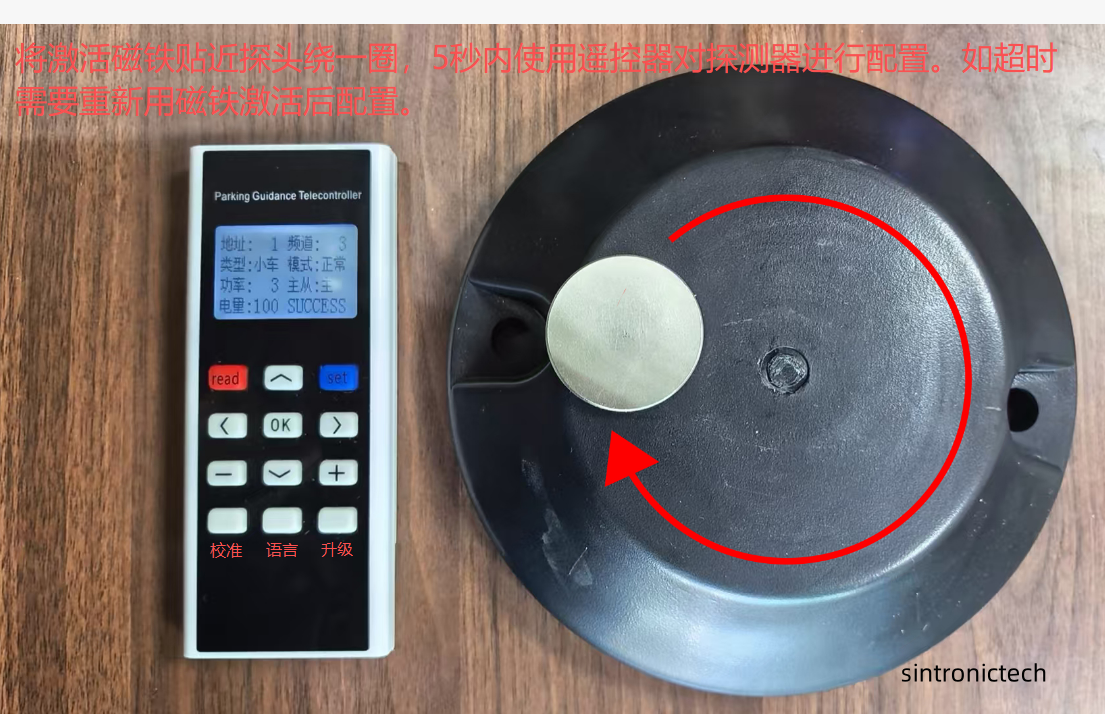

Place the activation magnet close to the probe and wrap it around it once. Perform the operation within 5 seconds. Probe parameters can be read and set. If the timeout occurs, reactivate with the magnet.

Address: Each channel address must be between 1 and 95 and cannot be repeated (address 0 is for test mode; it cannot be 0 for production use).

Channels: Channels 0-63, a total of 64 channels.

Modes: Normal and Sleep modes. In normal mode, it wakes up every 20 seconds for detection and uploads every 70 seconds. In sleep mode, it does not upload.

Add/Subtract Buttons: Modify the parameters indicated by the cursor.

Read Button: Reads the parameters currently stored in the detector.

Set Button: Sets the configured parameters from the remote control into the probe.

Calibration Button: When the probe is first installed, it can recalibrate the environment if abnormalities are detected.

Language: Chinese/English switch

Upgrade: Operate when the probe needs an upgrade (consult relevant technical personnel).
