What is parking guidance system

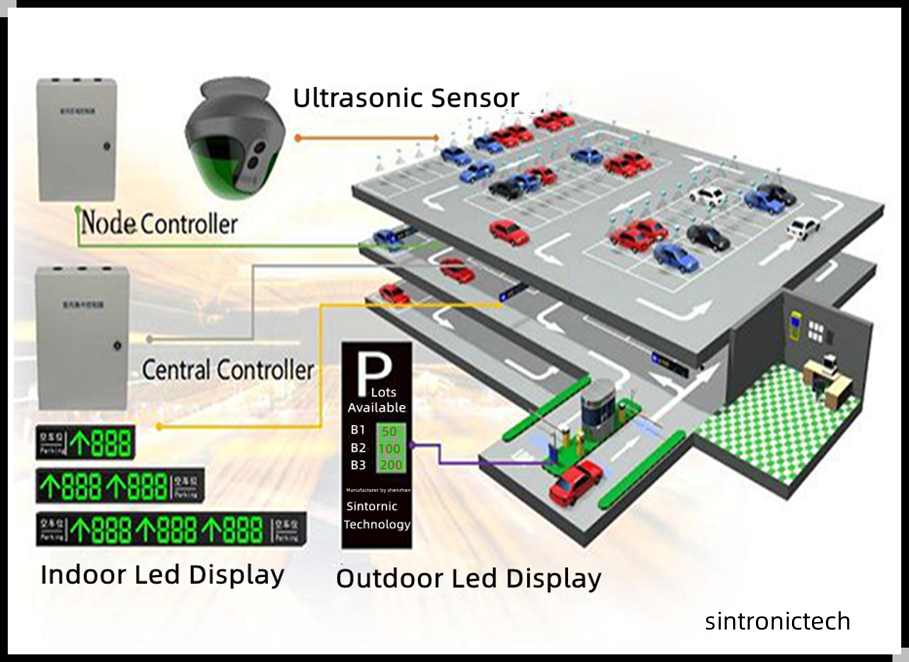

The parking lot location induction system is generally composed of three parts: data collection system, data release system and data management analysis system. The main role of the data collection system is to collect the parking space information in the parking lot in real time and bring the data to the data processing center. The main role of the data release system is to publish the information on the spacious parking spaces in each partition in the data processing center to the inlet and exit of the parking lot or the LED display at the intersection of the transportation intersection in the parking lot. The data analysis management system mainly completes the statistical analysis and printing reports of the real -time data received by the data processing center.

         Working principle: After the installation of the device is completed, the user first sets parameters such as numbers and ground sensitivity on each collection terminal. From 1, the number must be continuous, so that the system will work normally. The terminal with a number 1 is defaults to the data center by the system.
After determining the data center, perform the following operations on the center:

         ① Set the total number of parking lot partitions and the total number of collection terminals (that is, the total number of entrances and exits);
         ② Set the mailing address (that is, the first address) of the first zone display screen.
         ③ Set the total number of parking spaces in each partition and the existing empty hostel;
         ④ Acting terminal corresponding to the partitions of the association traffic;
         ⑤ The exit terminal corresponding to the partitions of the association flow

         After completing the following settings, the system can enter the working state.


          When a vehicle is collected through the coil of the terminal, the terminal is collected to detect the direction of the vehicle and count it. At the same time, the relevant information is sent to the data processing center through the CAN bus. The parking space information of each partition is published on each data collection terminal by broadcasting through the CAN bus; after receiving the broadcast information, the data collection terminal will send the parking space information in each area to the LED display in a wired or wireless manner; Each LED display has an address that can be encoded, which corresponds to the only corresponding to a certain parking area number. Therefore, each LED screen shows the remaining parking space information of each corresponding parking space partition.
