How to do wiring in between ultrasonic parking guidance sensors

 DOWNLOAD

The complete parking guidance system is consist of ultrasonic sensor, main controller, nod controller, led screen and software

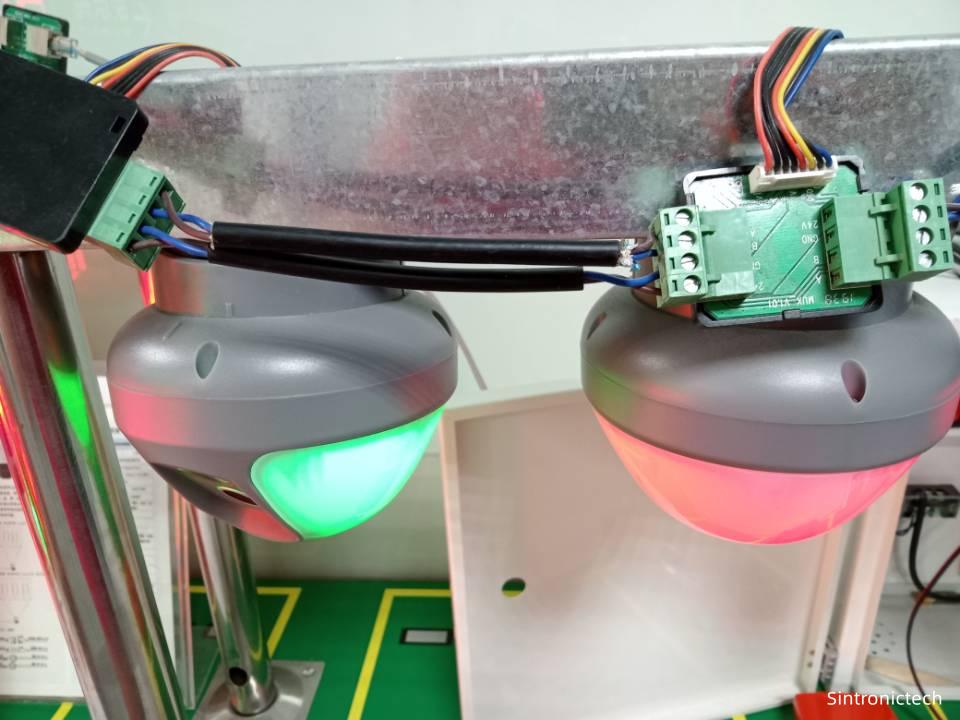

In this page we mainly guide our client on how to do the wiring in between ultrasonic parking guidance sensors.

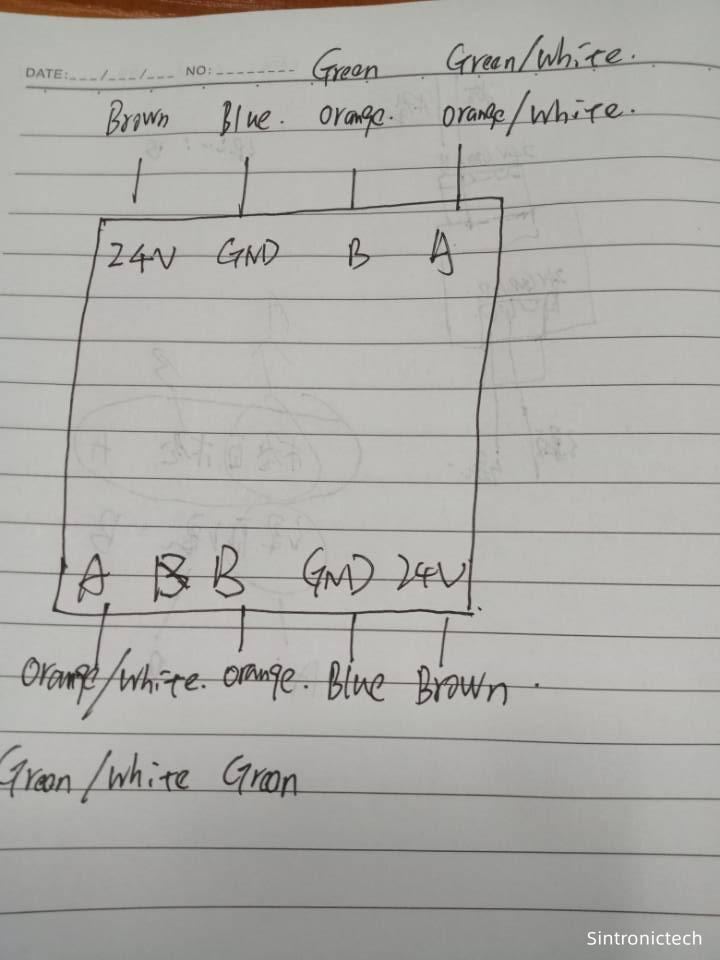

Our ultrasonic sensor for parking guidance system adopt rs485 communication technology to work for each other signal transfer and it request to use the RVVPS cable for wiring by doing like
organge+white （line order）for connecting to A and Orange color for connecting to B
Or green+white wiring to A and green wiring to B
