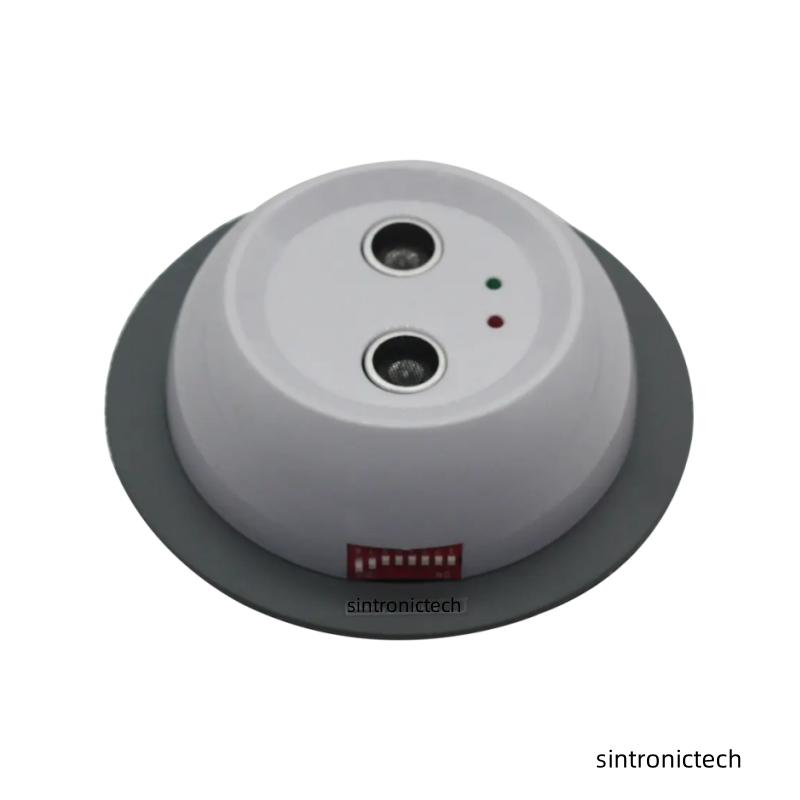

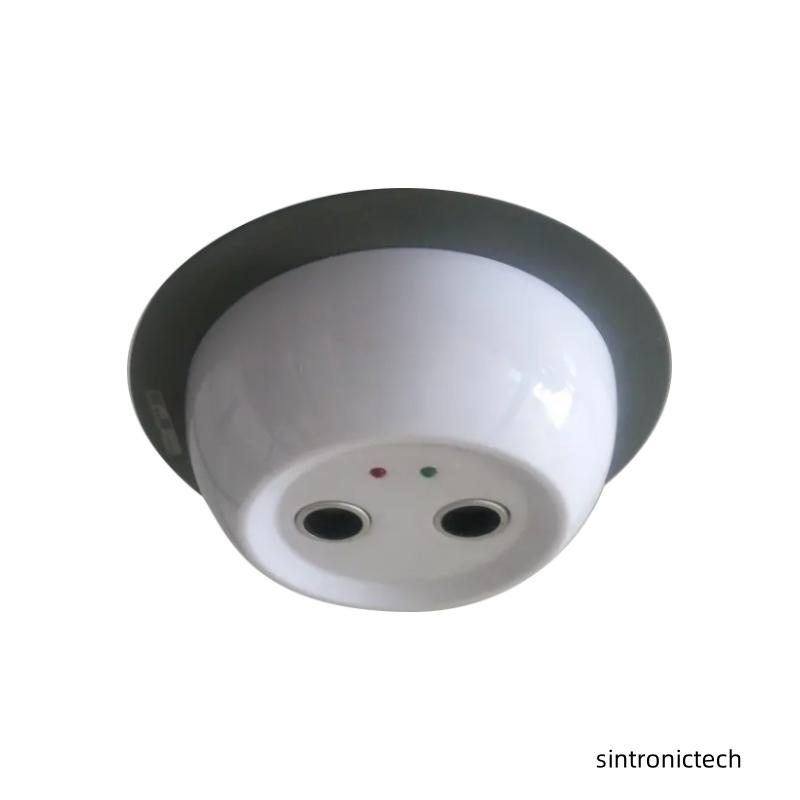

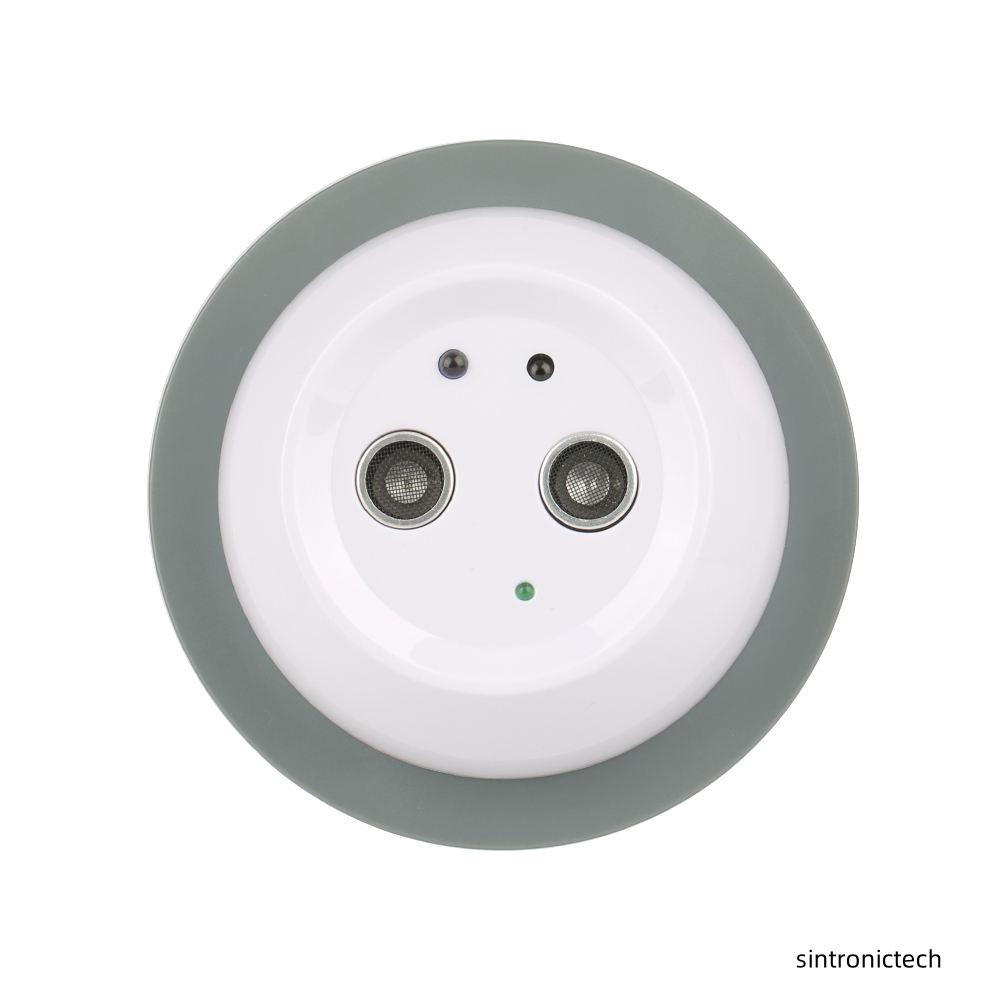

Parking Lot Detector use ultrasonic wave to detect parking lot occupancy information, and using LED indicator to distinguish its status (RED is occupied, GREEN is available), which can guide the motorist to find space quickly and improve parking management level. At the same time send the status to the upper controller.

Technical Parameters:

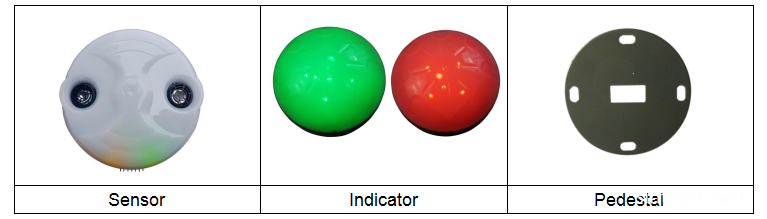

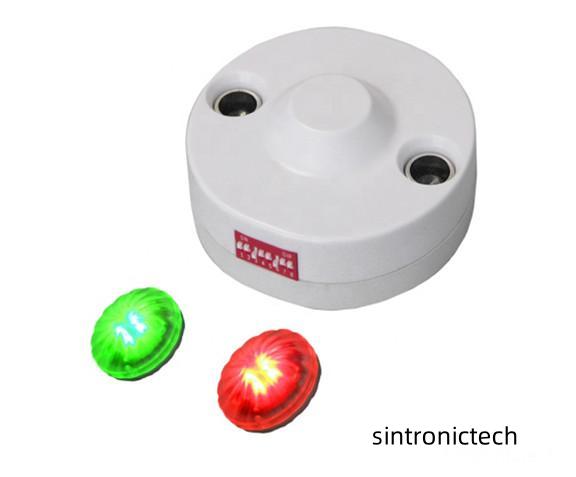

The Split-type Ultrasonic Sensor is consist of sensor+indicator which  excuse an excellent performance in the parking guidance system

1. Operating Voltage: DC12V-24V (Advise 24V)
2. Operating temp.: -20℃ to 65℃
3. Detection Range: 0.5-3.5m

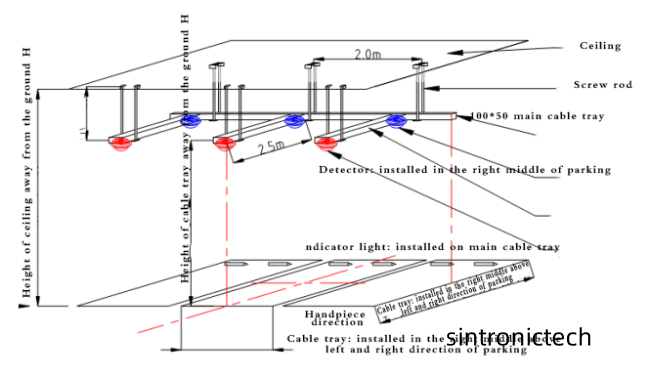

4. Installation: ceiling bridge installation, the red-green
5. Indicator is installed above vehicle head line

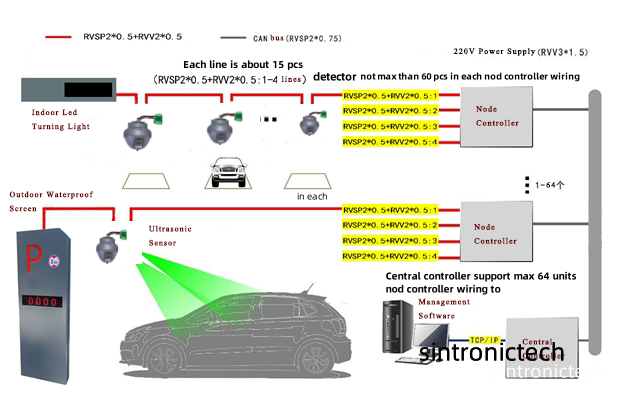

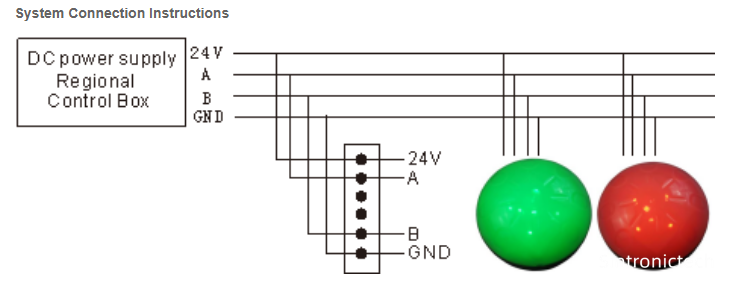

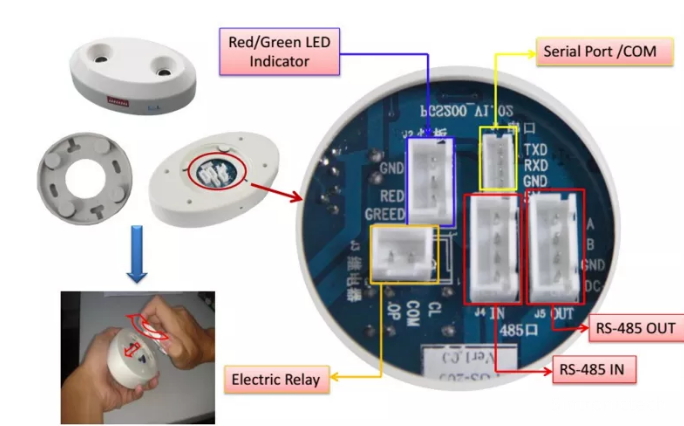

Wiring Diagram

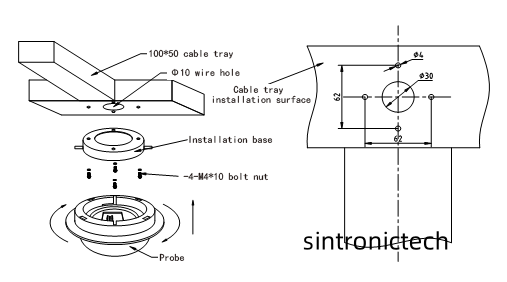

Installation Manual
