Parking- 201/202/203 SCREEN

一：Technical Parameters

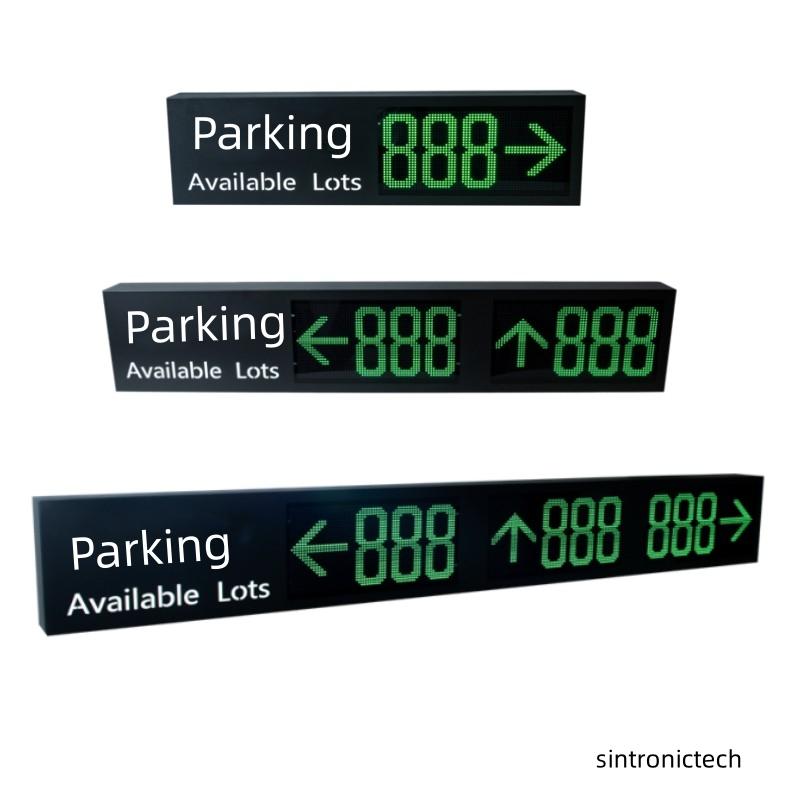

1.Single Direction Indoor Display Screen

Model :Parking-201Screen

770 * 210 * 80mm, including empty space light box
Light box font is customizable

2.Double Directions Indoor Display Screen

Model:Parking-202Screen

1080*210*80mm, including empty space light box
Light box font is customizable

3. Triple Direction Indoor Display Screen(3 allows)

Model:Parking-203Screen

1460*210*80mm,including empty space light box

Light box font is customizable

二：Wiring Diagram

Use the RV3 * 1.5 power cord to connect the input power AC220V to the switching to
supply in the power box
Communication line connection:' use rs485 port

三：Indoor led display direction arrow changing

Use rs485 debug tools

四：Components for integrated parking guidance system

五：Working flow

六：Applications

Sintronic integrated parking guidance system is mainly suitable for large and medium-sized underground parking lots, and is widely used in public parking lots such as government office buildings, large hospitals, railway stations and shopping centers. Its main working principle is to send ultrasonic waves from top to bottom according to the ultrasonic detector to detect the reflected waves on the roof and the ground, so that it can correctly detect whether there is a vehicle in each parking space, and then pass the parking information of each parking space through the network line Pass it to the control computer, and the computer passes the guidance signal to the guidance indicator through software processing. Indicators guide drivers to quickly find vacant seats.
